Product description:

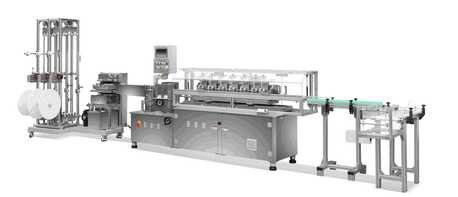

PS-80 paper straw machine is designed for making paper drinking straw. Meeting Food grade production standard.
Making spirally tube from Glue feeding、winding, final cutting inline.
1、 Body structure, Heavy-duty steel welded after NC cutting. Stable ,Strong and small vibration.
2、 Paper stand , integral high speed design, constant paper tension control..
3、 Glue stand, glue temperature control, feeding amount control.
4、 Simple appearance, all motors put inside, make it easy for cleaning..
5、 Safety as the core design element, transformation part protected , covered with 1.2mm thick stainless steel.
6、 Stable, simple transformation principle, maintaining-free design, reduce maintaining frequency during operation.
7、 High speed, 80M/Min paper feeding, up to 70M/Min tube production speed.
Splicing part & Glue system with lubrication
Tube forming part
7 knives cutting part
Delivery part
Technical parameter:
Model PS-80
Paper Layer 3 layers
Inner Diameter 4.5-12mm
Cutting system 7 knives
Cutting length 120-1100mm
Capacity Max 80m/min.
Glue system with lubrication Fully-automatic
Splicing Semi-automatic
Working air compressor 0.6Mpa
Power 5.5 KW
Weight 2000 KG
Working space 7000x5000mm
Our service
1. One year guarantee time.
2. Present a set of wearing parts in wooden case before delivering the machine for free.
3. If parts (except wearing parts) are broken within guarantee time (it is not caused by human factor), they will be changed for free.

The client should pay for the cost following:
1. Visa fee
2. Air ticket
3. Diet
4. Accommodation
5. Labor fee:Three days for free
100 USD/day for extra
NOTE:ALL OF THE COST SHOULD SEND TO US BEFORE SENDING OUT ENGINEER/PARTS.
